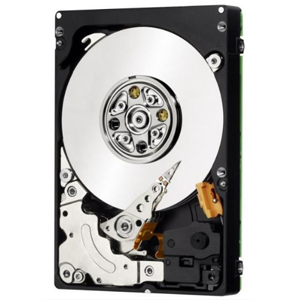

Toshiba 2TB Hard Disk Surveillance
Toshiba 2TB Hard Disk Surveillance ₨4,174
Click to enlarge

UNV Wifi kit

SKU: KIT/301-04LB-W/4*2122SR3-F40W-D Brand:

NVR301-04LB-W

  • Support 2.4GHz , Support two-antenna to strengthen the WiFi signal
  • Embedded WiFi Module with high-performance and high stability
  • Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA synchronous outputs provided
  • Up to 1080p resolution recording
  • 1 SATA HDD, Up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

IPC2122SR3-F40W-D

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format
  • ONVIF Conformance
  • Wide temperature range: -30°C ~ +55°C (-22°F ~ 131°F)
  • Wide voltage range of ±25%
  • IP66

Compare
Add to wishlist
16 People watching this product now!
  • Pick up from the Store selected at Check Out.

Items should be paid for and collected as soon as transaction is done, subject to cancellation if not collected within 5 days.

Free

  • Delivery Service

Within 5 working days

Free

FREE for orders above Rs. 5,000

  • Warranty Period and services offered are as per Manufacturer's Terms

More details

Description



Model NVR301-04LS2-W
Video/Audio Input
IP Video Input 4-ch
Network
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 40Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output
VGA HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768/60Hz
Recording Resolution 1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 4-ch
Corridor Mode Screen  3/4
Decoding
Decoding format Ultra 265/H.265/H.264
Live view/ Playback 1080p/960p/720p/D1/2CIF/CIF
Capability  4 x 1080P@20, 4 x 720P@30
Hard Disk
SATA 1 SATA interface
Capacity Up to 10TB for each HDD
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel：2 x USB2.0
Wi-Fi
Frequency 2.4GHz
Transmission Rate 150Mbps
Wireless Standards IEEE 802.11b/g/n
Wireless Range 280m(open environment)
General
Power Supply 12V DC
Power Consumption: ≤ 9 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 205mm ×228mm ×47mm (8.1″ × 9.0″×1.9″)
Weight ( without HDD ) ≤ 0.98Kg(2.16lb)
Model IPC2122LR3-F40W-E
Sensor 1/2.7″, 2.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F1.8
DORI Distance Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m)
4mm | 60            |         24        |            12         |       6
6mm |90              |         36        |             18         |       9
Angle of view(H) 86.5°
Angle of View (V) 44.1°
Angle of View (O) 106.4°
Adjustment angle Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360°
Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Colour: 0.01 Lux (F1.8 AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:2MP (1920×1080): Max. 20 fps;
Sub Stream: 2MP (1920×1080): Max. 20 fps;
Third Stream:D1 (720×576): Max. 20 fps
9:16 Corridor Mode Supported
HLC Supported



Specification

Overview

Brand

UNV
